Bending Unit
RONGWINMastering Metal, Shaping Futures
RWA05-PC1/3 Series
Heavy plate bending serieswith outstanding performance
High Precision
High Efficiency
Laser Protection
Standard equipped with exclusivepatented pneumatic clamping knife
Designed specifically for thick plates, the cold-rolledsheet can be up to 3mm thick at its thickest point.
Optional PAS enhanced version (completely upgradedwith x/w/z three-axis and three-drive system)
EOUIPMENT SPECIFICATION PARAMETERS

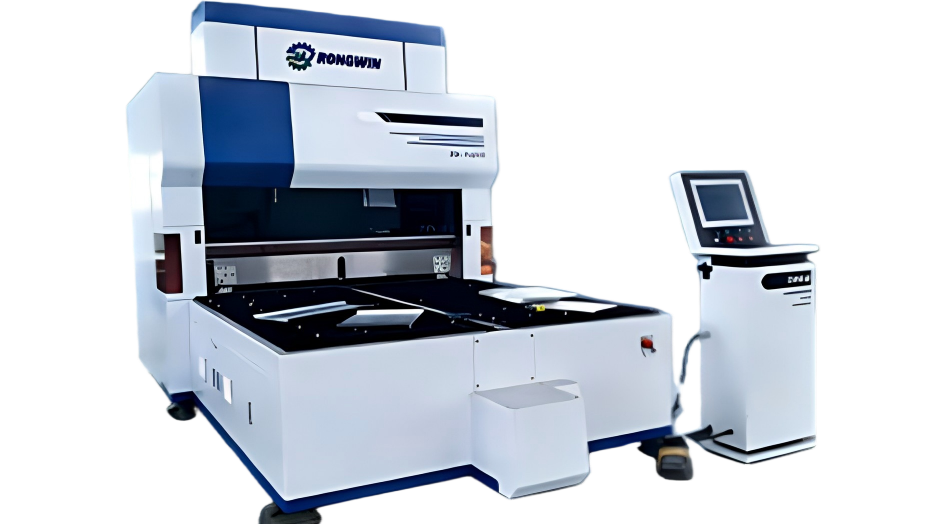

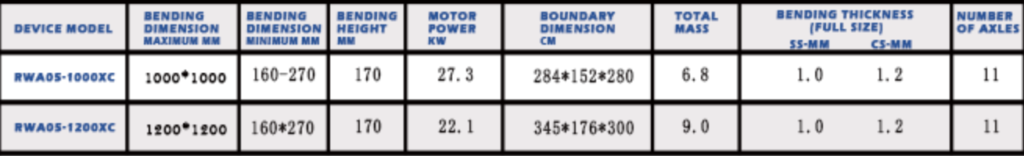

RWA05-XC Series
Vacuum suction feeding, compact structure
High Precision
High Efficiency
Laser Protection
Using the suction cup feeding method
Applicable to workpieces with smooth surfaces that can beadsorbed by suction cups
Standard configuration includes 11-axis concurrent linkagecontrol and standard power hinge cutter.
Small in size, convenient for loading and unloading.
Suction cup type universalseries flexible bending center
EOUIPMENT SPECIFICATION PARAMETERS

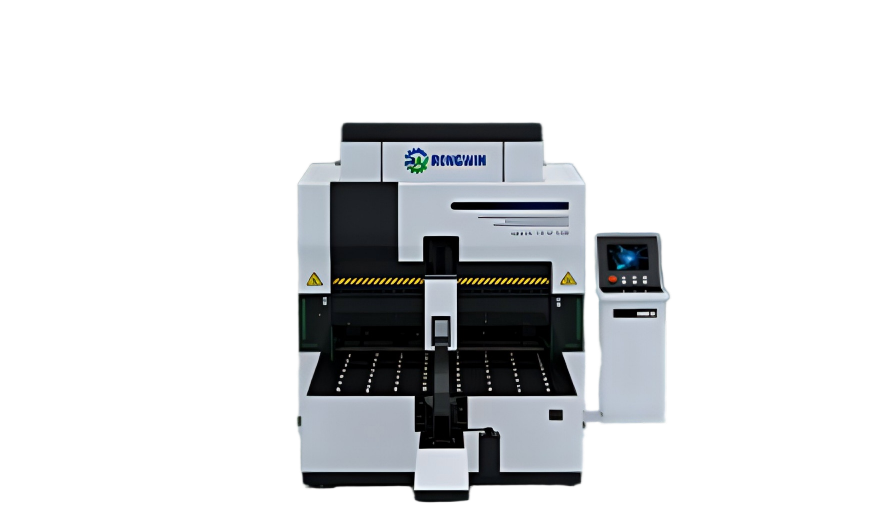

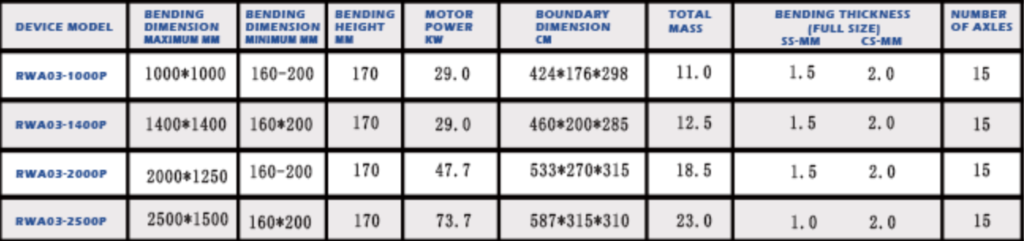

RWA03-P Series
Pressure arm type feedingwith strong versatility
High Precision
High Efficiency
Laser Protection
Using the push-armtype feeding method
Holes, waves, hollowing out and various flat orirregular workpieces are all applicable.
Standardly equipped with a power hinge knife to avoidchipping and scratches on the blade plate.
Available in various knife-hanging methods
Arm-pressing universalseries flexible bending center
EOUIPMENT SPECIFICATION PARAMETERS

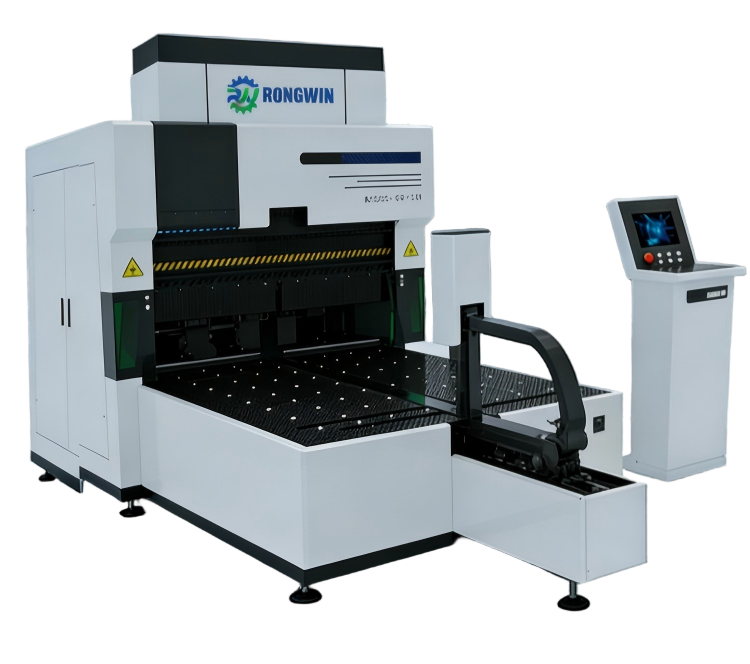

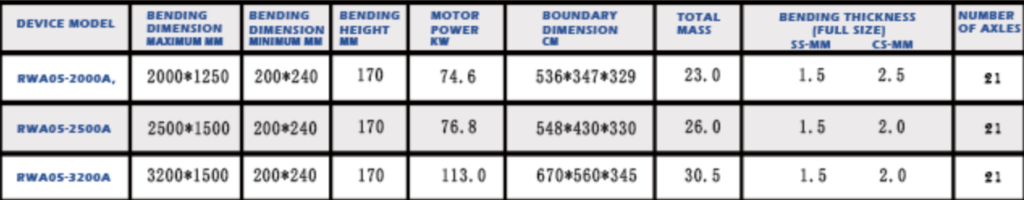

RWA05-A Series
The automatic knife assembly series offers high cost performance.
High Precision
High Efficiency
Laser Protection
Exclusive patented automatic blade assembly algorithm
Power hinge knife with automatic alignment of blades,achieving the highest overall efficiency.
Meet the processing requirements for various types ofsmall-batch and diverse products
Standard equipment includes automatic cutting knife andbending auxiliary knife.
EOUIPMENT SPECIFICATION PARAMETERS

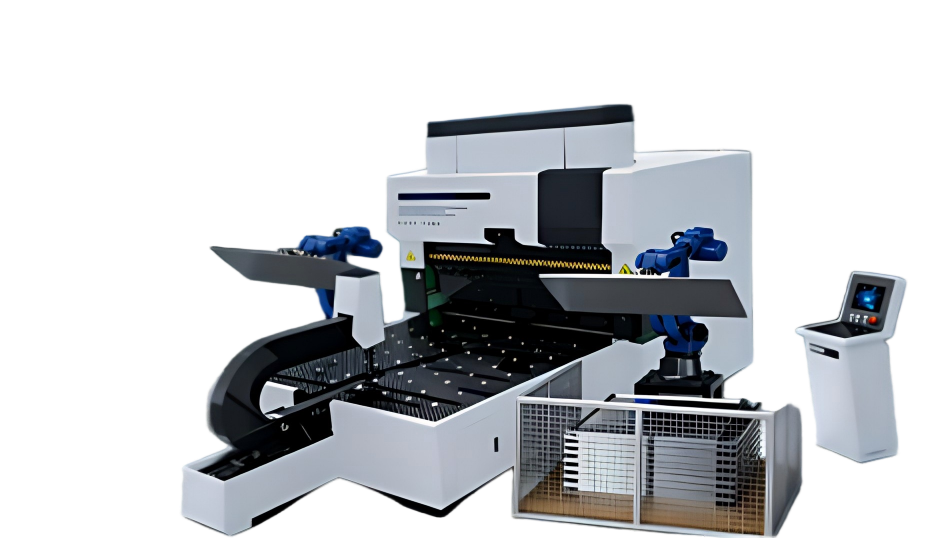

RWA1820 Series
Mechanical arm loadingand unloading scheme
High Precision
High Efficiency
Laser Protection
Optional single-arm/double-arm loadingand unloading solution
The same control system as the bendingcenter, making maintenance much easier.
Changing the workpiece does not require reprogr--amming The bending action is smooth and seamless.
The robotic arm system supports thesecondary development of the process package.

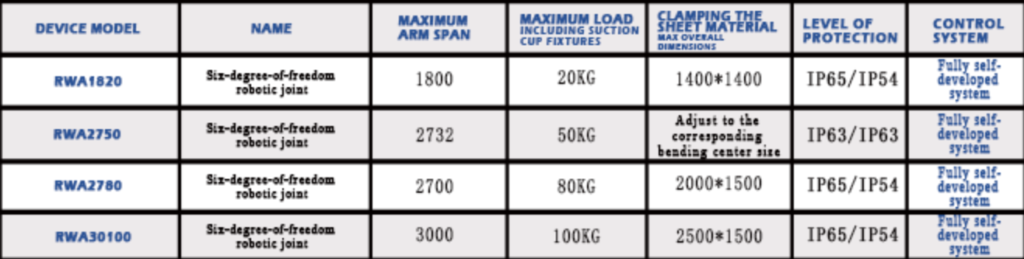

EOUIPMENT SPECIFICATION PARAMETERS

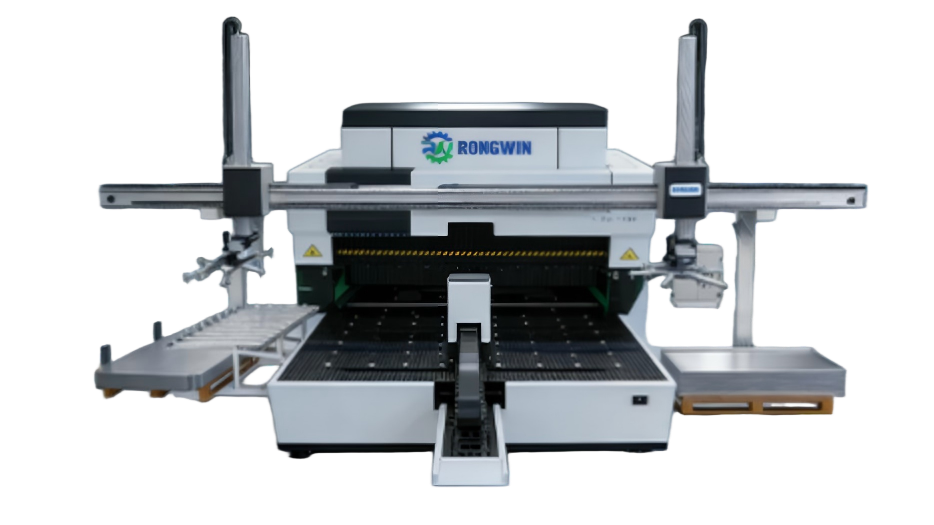

RWA-UL-X8 Series
Truss loadingand unloading scheme
High Precision
High Efficiency
Laser Protection
Simple structure, high cost-effectiveness
The same control system as the bendingcenter, making maintenance much easier.

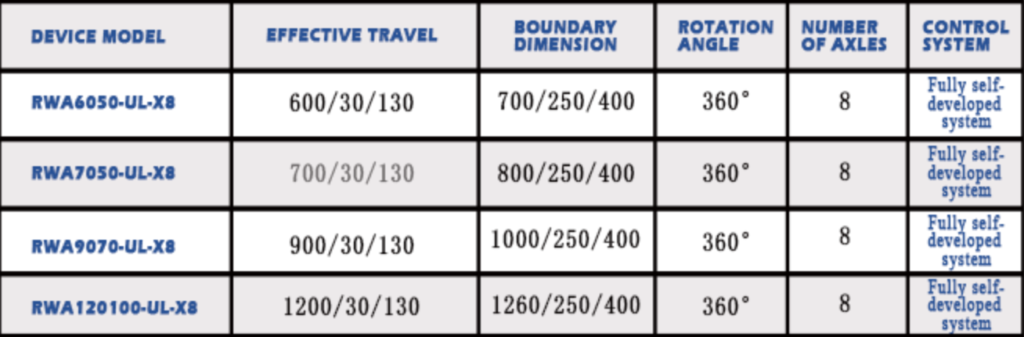

EOUIPMENT SPECIFICATION PARAMETERS
Automated Loading andUnloading Gantry Crane Solution
High Precision
High Efficiency
Laser Protection
The same control system as the bending center, simple andefficient
Fully independently developed, compatible withmoreupstream and downstream equipment
The structure is simple and enables efficient loading andunloading.

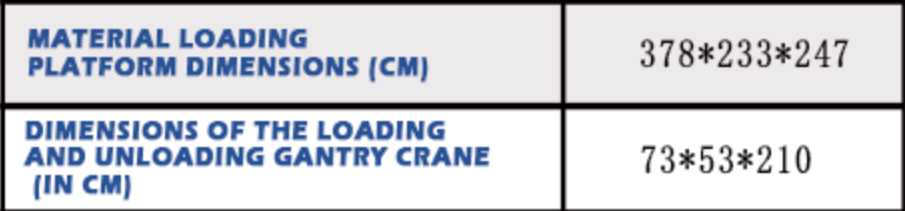

EOUIPMENT SPECIFICATION PARAMETERS
